ORIFICE PLATES
ORIFICE ASSEMBLIES
RO & MUL. RESTRICTION ORIFICE ASSEMBLY

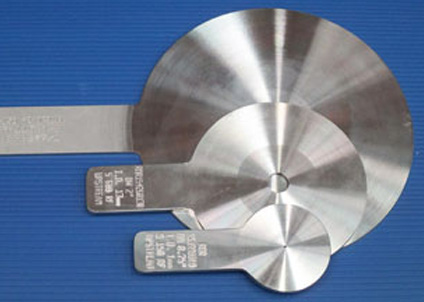

Types of Orifice Plates.

  • Square Edged
  • Eccentric
  • Segmental
  • Quadrant Edge
  • Conical Entrance

Types of Orifice Plates.

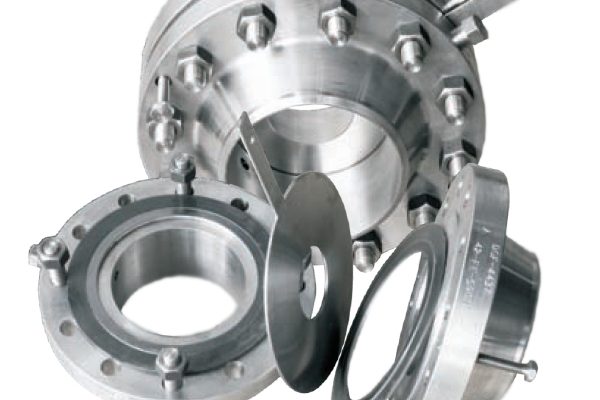

  • Orifice Plate With Weld Neck Flange Union
  • Orifice Plate With Slip On Flange Union
  • Orifice Plate With Carrier Ring And Flange Union
  • Orifice Plate With RTJ Holder & RTJ Flanges

Restriction Orifice plates have traditionally been used to reduce pressure in gas and liquid flow by forcing the flow through a restricted bore. The precise pressure drop is produced by accurately calculating the orifice bore taking in to consideration relevant process and flow conditions.

Product

Interested With Our Product ?

Contact IMIESB Today!

Product

METER RUNS
NOZZLES
AVERAGING PITOT TUBES

Meter runs are used for the measurement of small flow rates precisely where high accuracy of flow rates is required. They are generally supplies as a unit normally of 1M length to ensure the necessary straight pipe length to achieve highest possible accuracy.

Flow nozzles are manufactured in accordance with ASME codes and standards. Flow nozzles are suitable for measuring liquids and gases and are commonly used for measure steam and water flow. They are manufactured strictly in accordance with ASME, MFC-3M,BS 1042 and ISO 5167. Flow nozzles are erosion resistant, consistently accurate and maintenance free.

Averaging Pitot tube is a differential pressure producer suitable for liquid, gas and steam flow measurement. It offers simple, low cost installation into pipes and ducts, and high energy savings due to its low unrecovered pressure loss. There are no moving parts or sharp edges to wear, so long term accuracy can be maintained.
